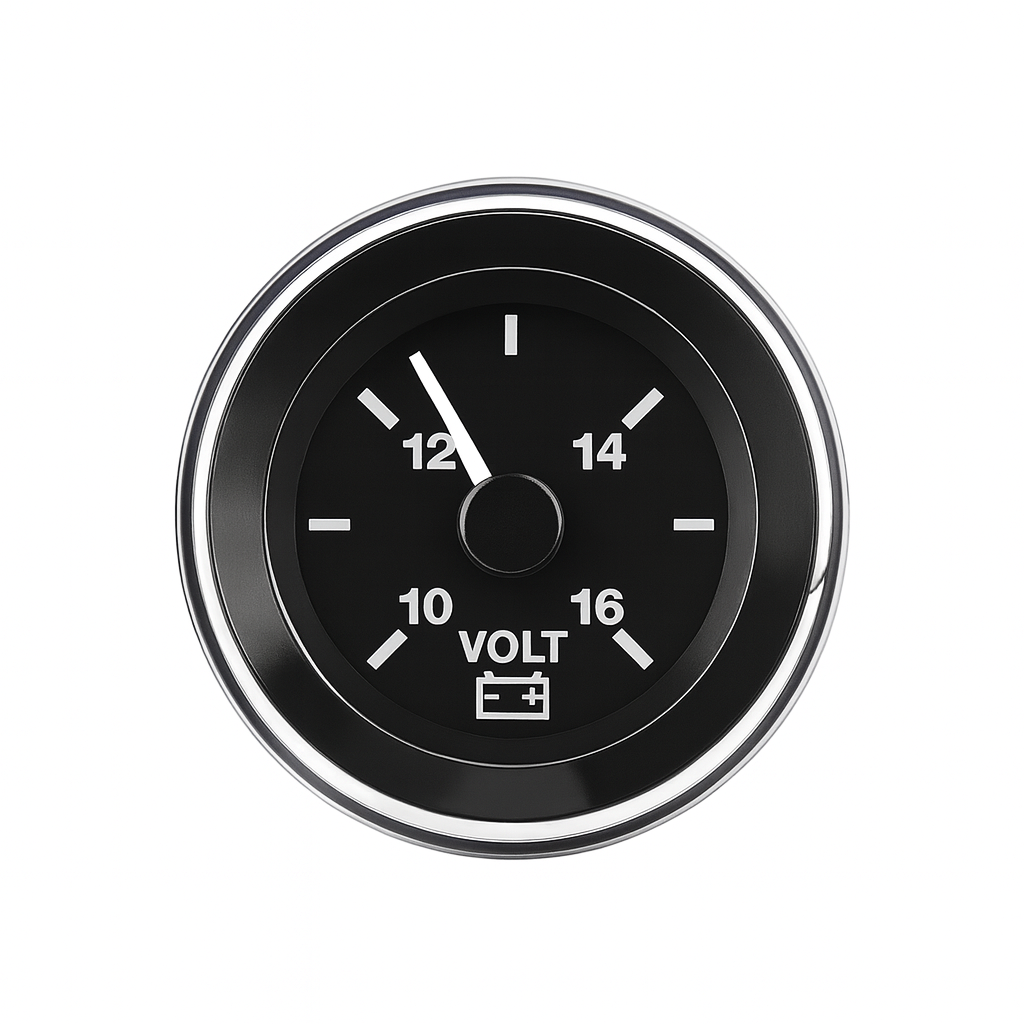

Matrix - VOLT Gauge - KIT

• Manufacturer / Part #: ​Veethree - Teleflex / 781021SDFB, 69999K
• ​Series: ​​Matrix
• ​Size: ​2 inch (2.10"/53.3mm hole cutout)
• Range: ​10-16 VDC
• Connection Type: ​​​​Deutsch connection
• Features:
• • ​Can be added to SmartCraft or NMEA2k Matrix series Tachometer kits.
  • White graphics on Black face
  • ​Polished stainless steel trim ring
  • ​2 tone dial - Black hub w/ White pointer
  • ​Dimmable Red LED backlighting
  • ​Anti-Fog, scratch resistant domed glass lens
• Applications: ​​​​Outboards, Stern Drives, Inboards, Gas, Diesel

The Matrix gauge set is an affordable, high-value range of digital instruments designed to operate on Mercury SmartCraft® engines (max 4 engines/2 stations.) Accurate reliable information is provided on a clean, easy-to-read gauge with an LCD display and soft-function tactile buttons for navigating through the menu interface. With the push of a button the operator has easy access to the status of the engine including fault alerts, diagnostic messages and other important parameter information using SmartCraft® protocols.

In a Matrix gauge set, the 3” Tachometer is the master and connects directly to the SmartCraft® data bus. All other gauges are servants and connect to the Tachometer RS-485 private bus. The Tachometer reads the applicable engine parameters and forwards them on the private bus for the applicable gauges.
