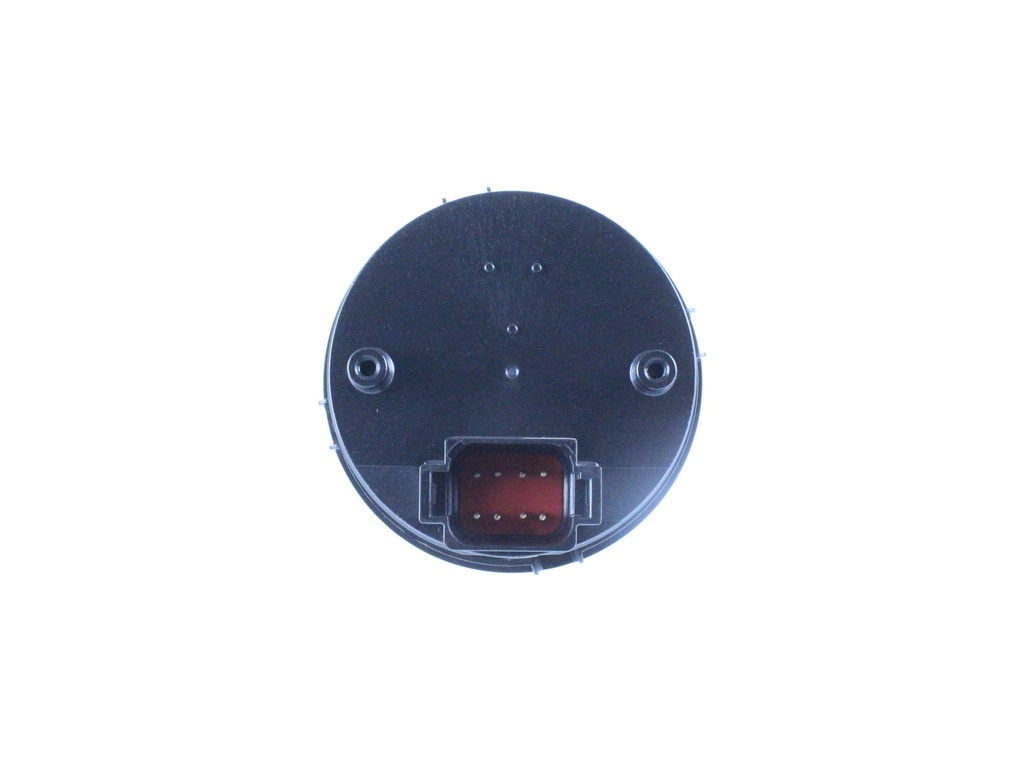

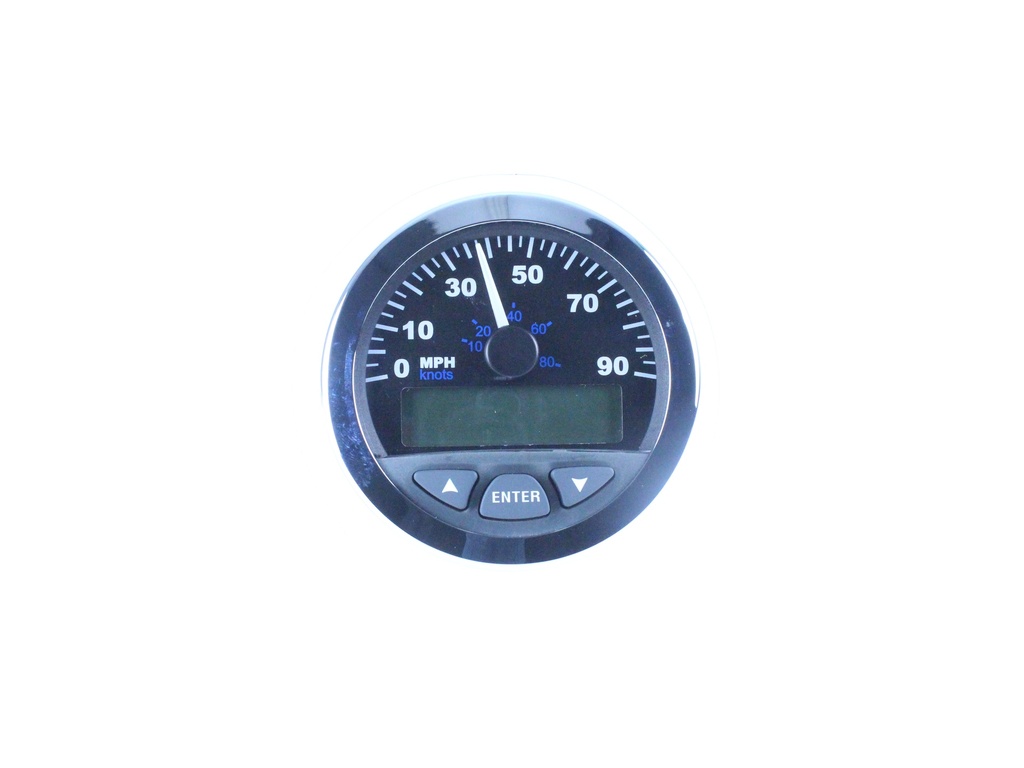

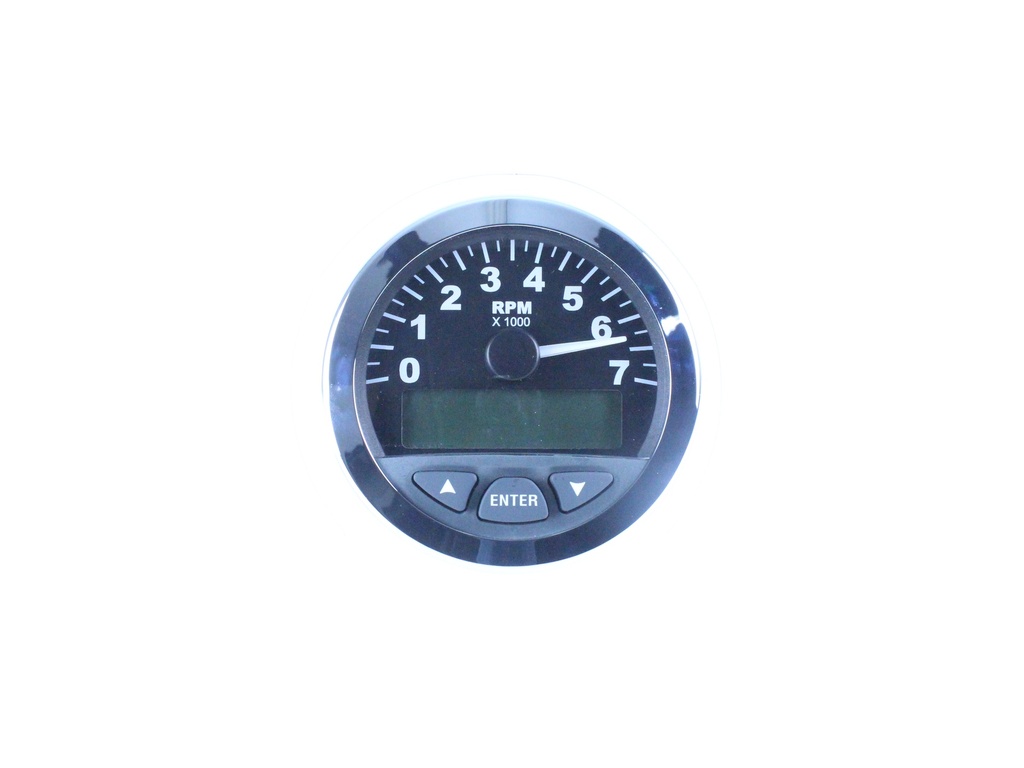

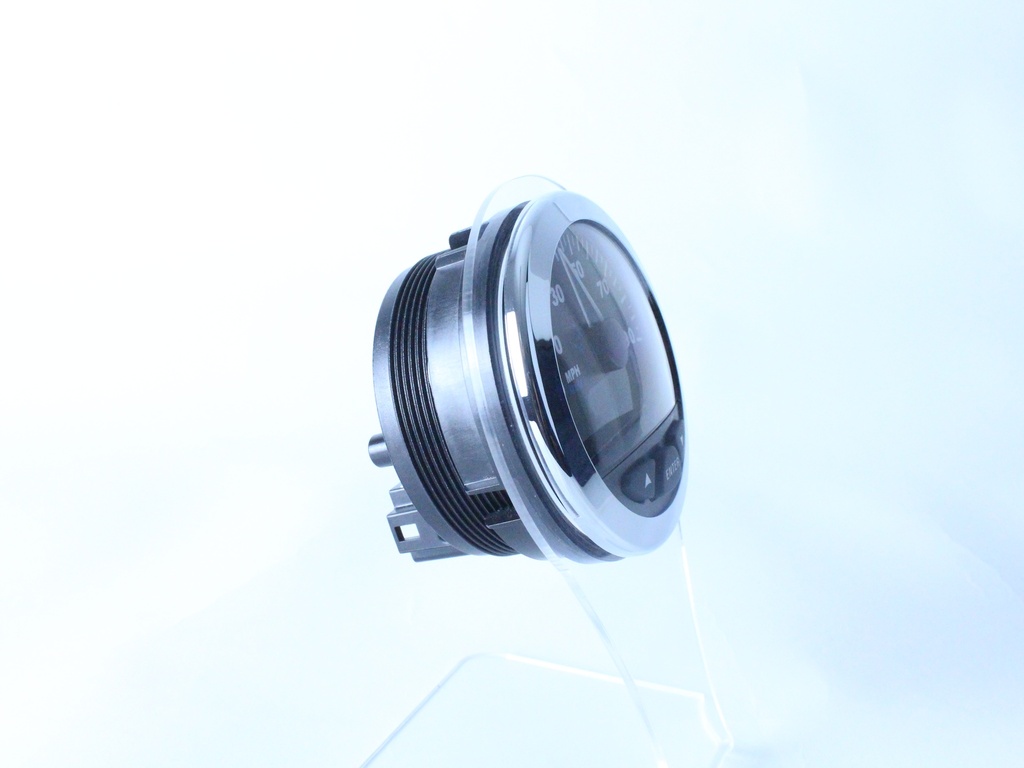

Matrix - SmartCraft Multi-function TACHOMETER & SPEEDOMETER - KIT

• Manufacturer / Part #: ​Veethree - Teleflex / 781014SDFB, 781016SDFB, 69995K, 69997K
• ​Series: ​​Matrix
• ​Size: ​3 inch (3.41"/86.6mm hole cutout)
• Range: ​​​​0-7000 RPM, 0-90 MPH
• LCD Display Functions: ​Engine RPM, Speed, Coolant Temp, Coolant Pressure, Oil Level, Oil Pressure, Oil Temp, Engine Hours, Fuel Flow, Fuel Pressure, Tank 1, Tank 2, RPM Sync, Trim, Trim Sync, Boost Pressure, Throttle Position, Load %
• Connection Type: ​​​​SmartCraft data bus connection
• Features:
• • ​Plug-N-Play design, complete with wire harnesses to plug into SmartCraft junction box.
  • White graphics on Black face
  • ​Polished stainless steel trim ring
  • ​2 tone pointer - Black hub w/ White pointer
  • Polarized Multi-function LCD display
  • ​Dimmable Red LED backlighting
  • ​Anti-Fog, scratch resistant domed glass lens
• Applications: ​​​​Gas Outboards, Stern Drives, Inboards

The Matrix gauge set is an affordable, high-value range of digital instruments designed to operate on Mercury SmartCraft® engines (max 4 engines/2 stations.) Accurate reliable information is provided on a clean, easy-to-read gauge with an LCD display and soft-function tactile buttons for navigating through the menu interface. With the push of a button the operator has easy access to the status of the engine including fault alerts, diagnostic messages and other important parameter information using SmartCraft® protocols.

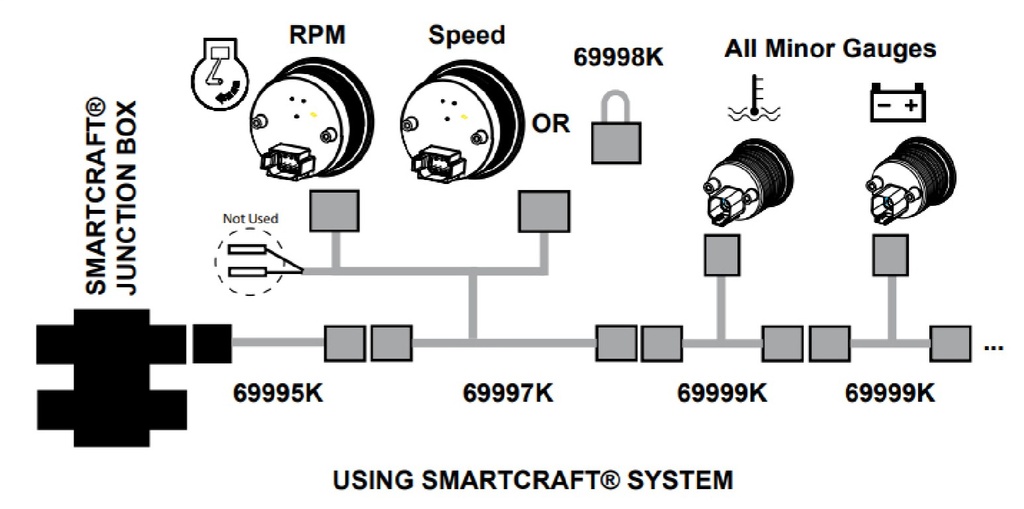

In a Matrix gauge set, the 3” Tachometer is the master and connects directly to the SmartCraft® data bus. All other gauges are servants and connect to the Tachometer RS-485 private bus. The Tachometer reads the applicable engine parameters and forwards them on the private bus for the applicable gauges.
