Pathfinder 6, 8, or 9 Position Instrument/Switch Panel
PNL-BW180VT-stg
Specifications
| Custom Cutout/Text (Up To 2 Cutouts & 3 Text Changes) | No or YES (Type Custom Work +$35) |
| Switch Panel Style | Style A or Style B or Style C or Style D or Style E |
| Choose Panel Color | Cherry Burl or Carbon Fiber or Blackwood Burl or Aqua Stardust or Flat Black or White Stardust or High Gloss Black or Teal Stardust or Gun Metal or Black Stardust or Light Silver |
Please click here see our Library/Tech Center for videos, articles, and FAQ's
- Boat Manufacturer: Pathfinder
- OEM Part#*:
- Fits Models*: -
- Construction: Acrylic 3/16" -HD 1/4" available
- Accessory Panels Available: Custom electronics panel - sold separately.
- Switch Kit Available: SKU#
* May fit other models/years, Part# for search/reference only
OPTIONS/SPECIFICATIONS:

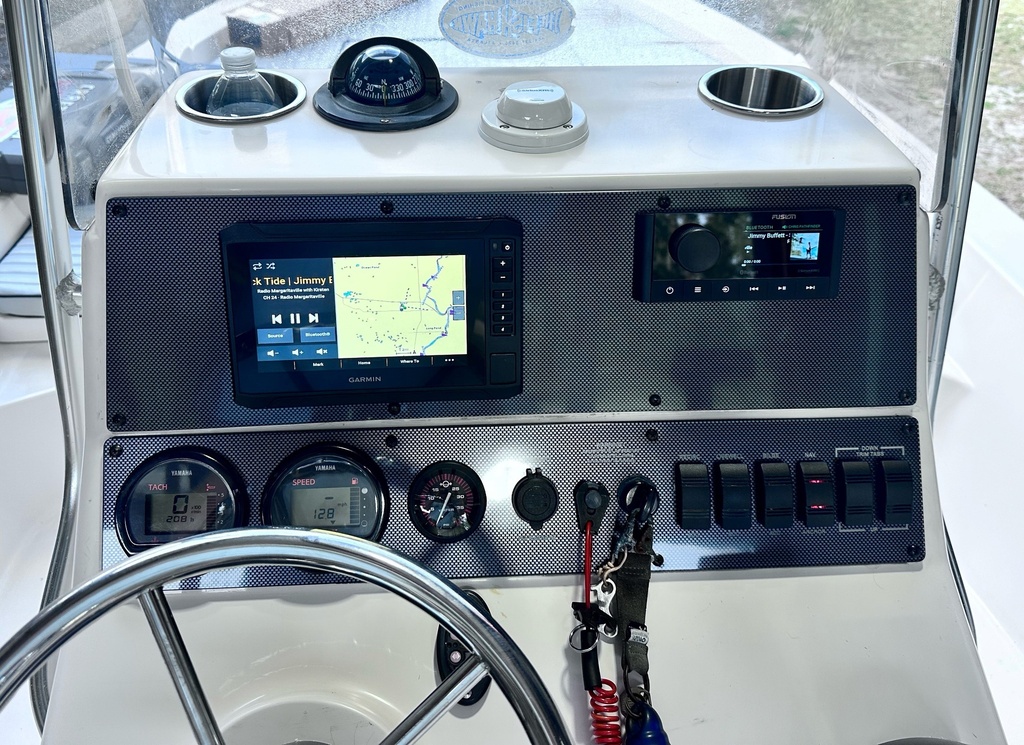

This panel has 6, 8 or 9 switch positions, please choose the correct option. Electronics panel shown in some photos is SOLD SEPARATELY
Measurements: 25" x 4-1/2"
Custom engraving and cutouts are available for a $35 charge.
Premium HD package available. This increases the thickness of the panel to 1/4" and the edges are rounded and polished for a really nice look.

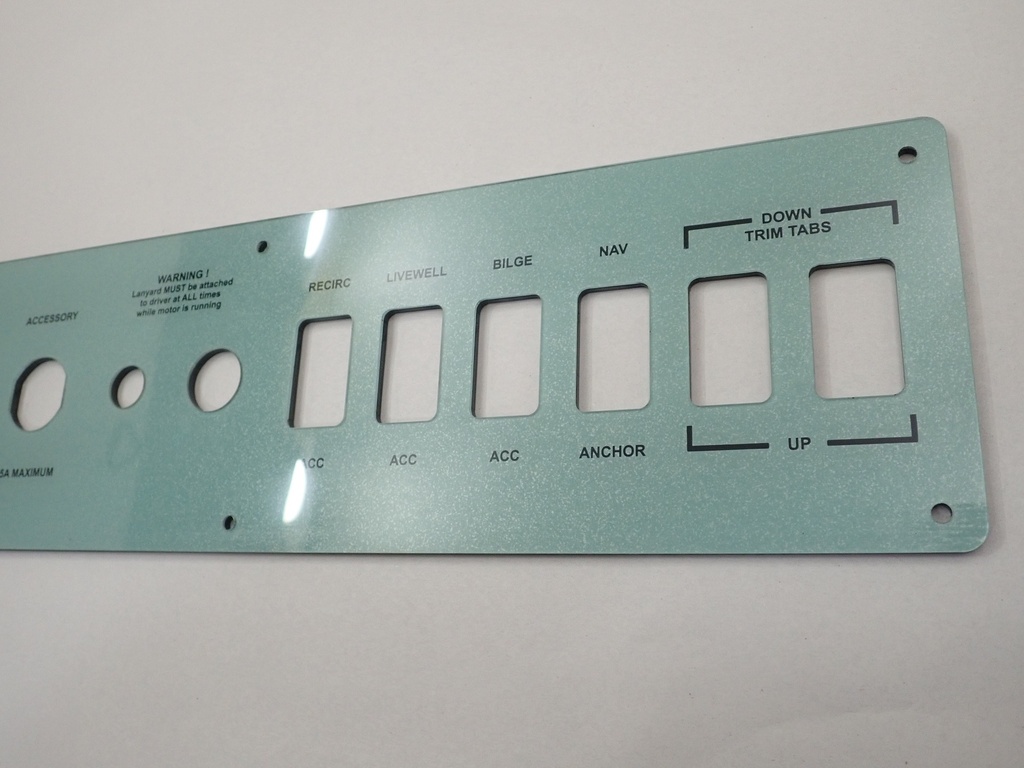

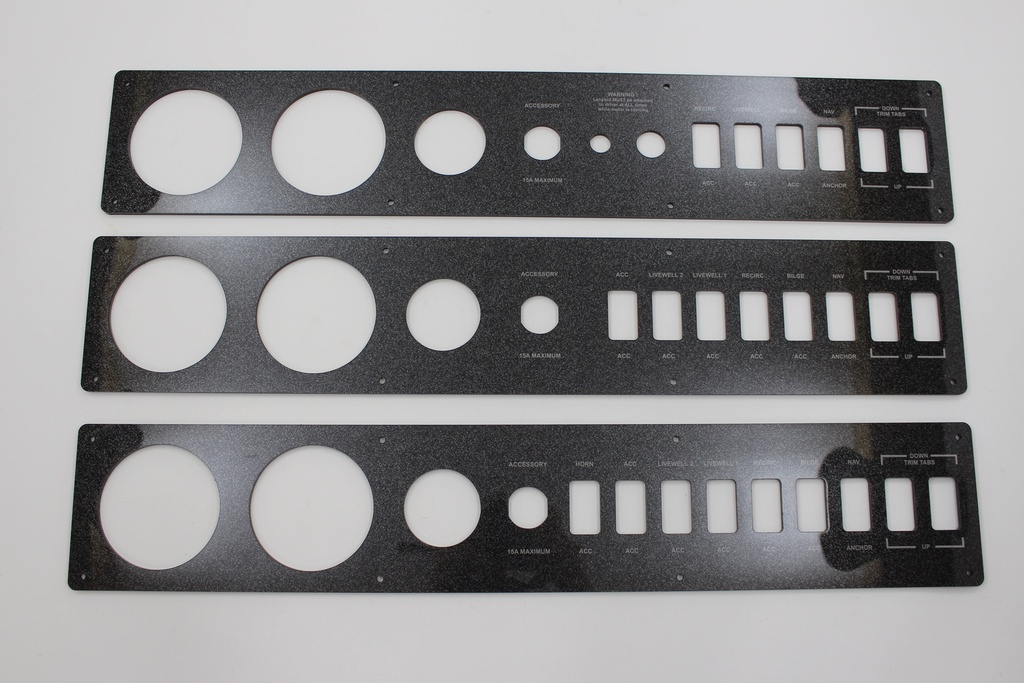

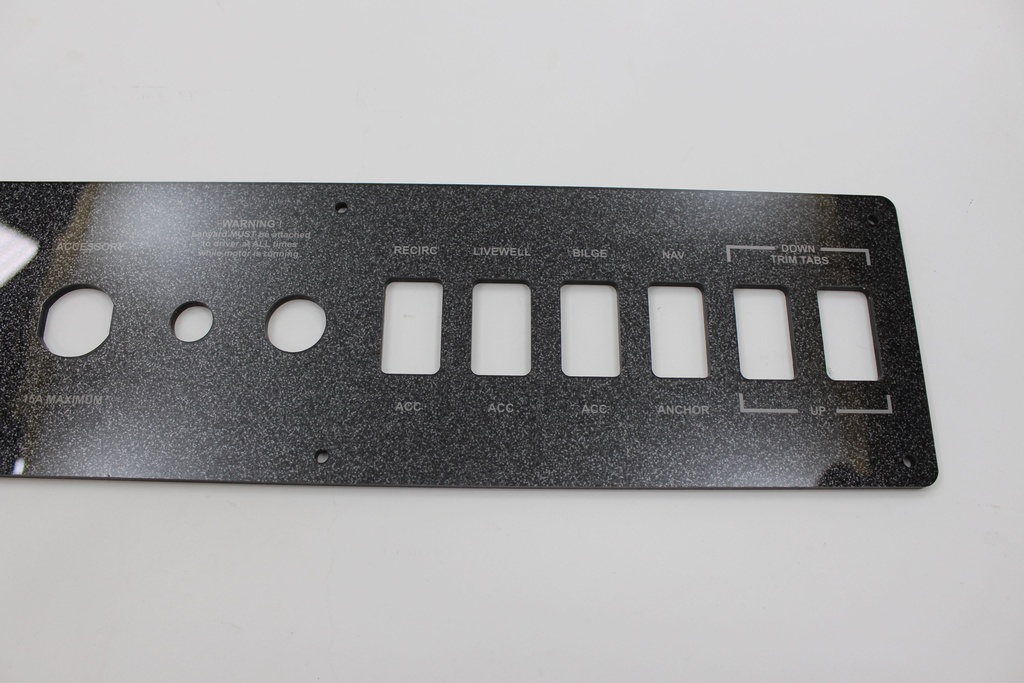

STYLE A - 6 switch positions

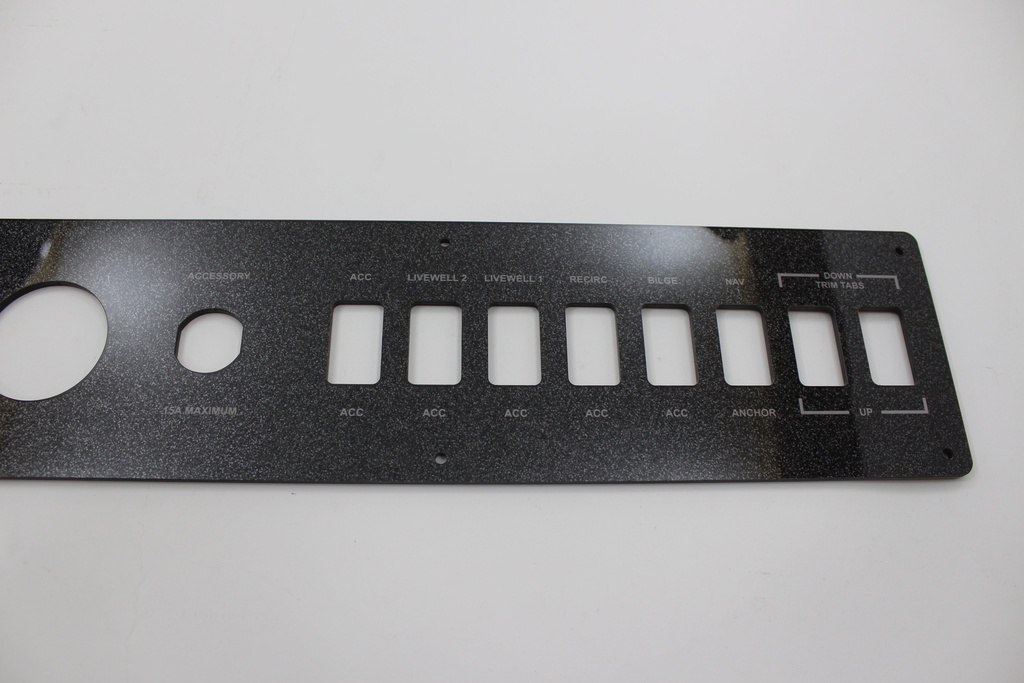

STYLE B - 8 switch positions

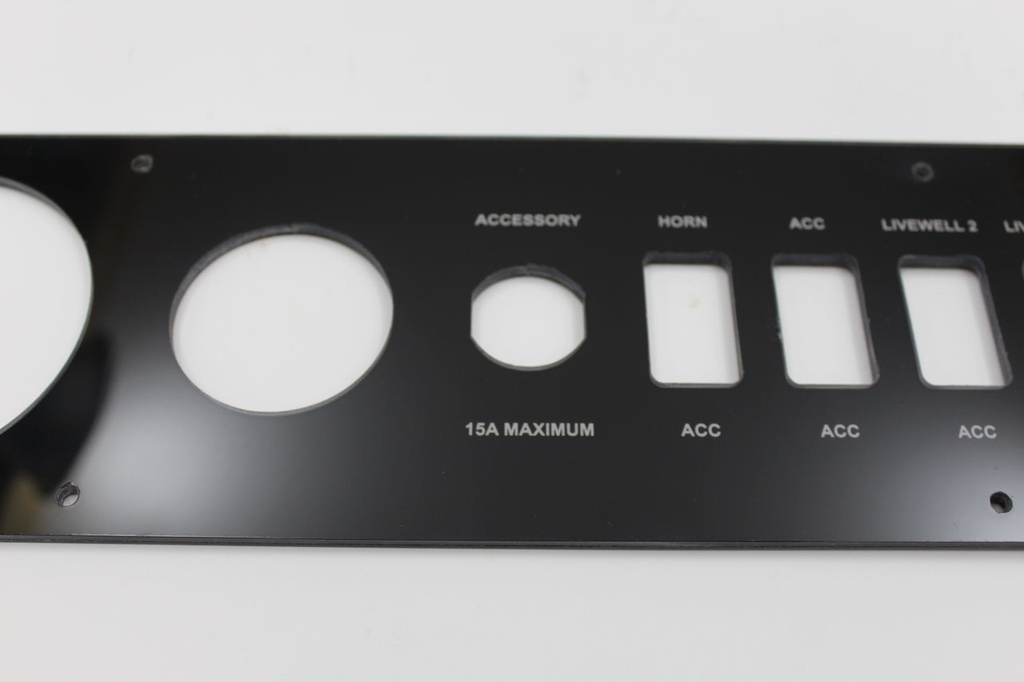

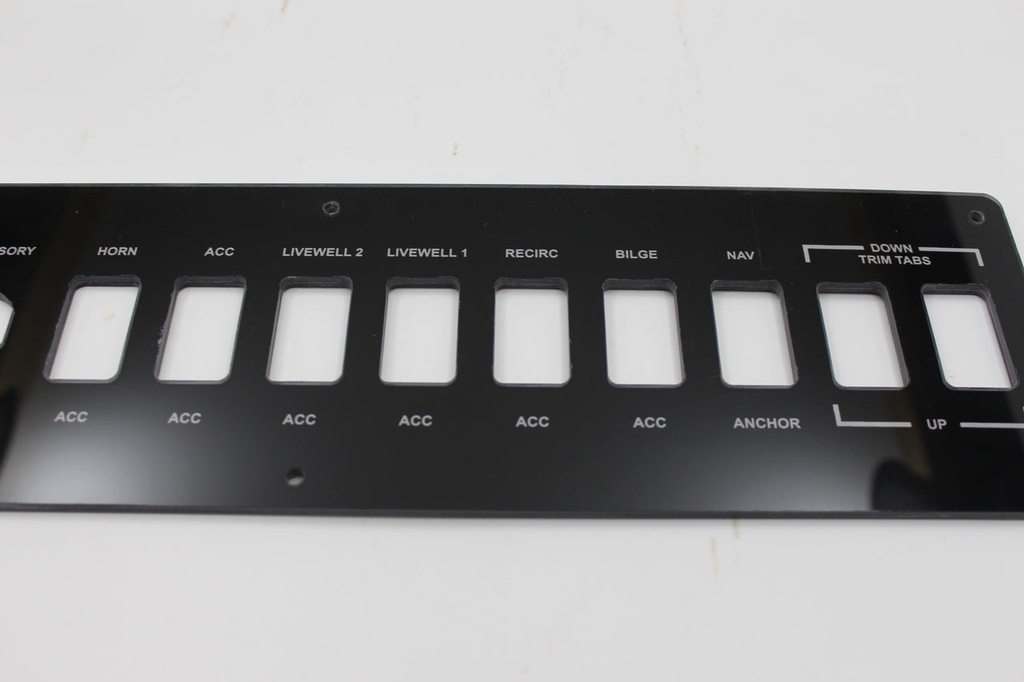

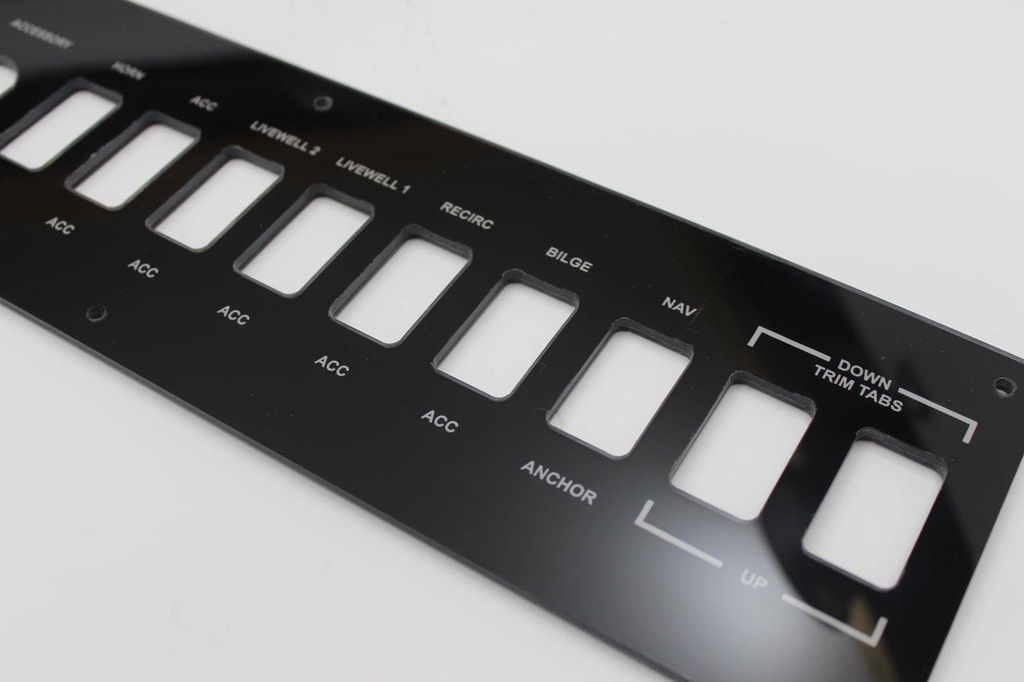

STYLE C - 9 switch positions
STYLE D - 2010 ish version. Switch labels are more specific, please see photo. Also email a photo of your original when ordering if the text does not match
STYLE E - 2011 ish. Note the arc relief on the bottom edge to clear the helm
SWITCHES: If you would like to order replacement switches and actuators click on the frequently purchased together listing at the bottom of this listing.
The 6 position switch panel requires:
2 VLD1-1 for trim tabs
1 VJDJ-1 for Nav lights
3 V6D1-1 for the Accessories
1 12VRC - 12 volt receptacle
4 C3-E actuators with double red lens
2 C3-i actuators with no lens
The 8 position panel requires: the same switches and actuators as above but add 2 more V6D1-1 and 2 more C3-E actuators for additional accessories.
The 9 position requires: The same as the 8 position unit but add 1 V7D1-1 for the horn/Accy and 1 C3-E actuator
