330 370 Express Cruiser 1997 SWITCH kit including Covers/Actuators

https://www.fpmarine.com/web/image/product.template/28825/image_1920?unique=e05e9e6

SUR-000009-1791788

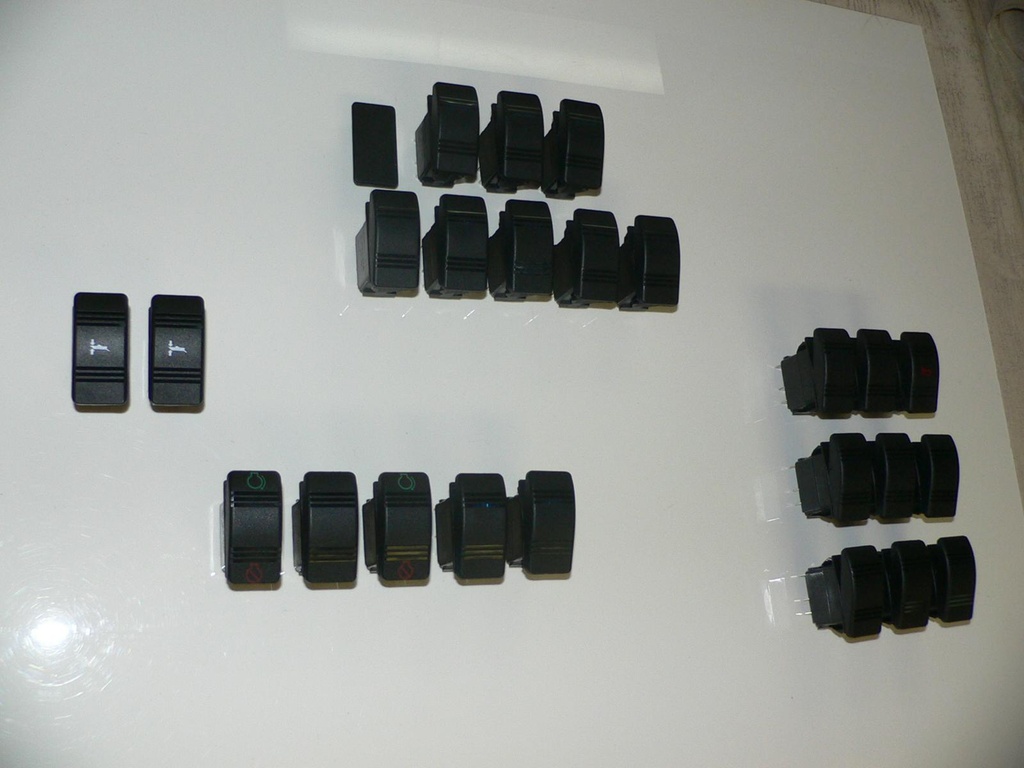

Carling Contura III V series rocker Switch AND Actuator kit
  • This is a SWITCH AND ACTUATOR kit.
  • This set is for the 1997 ish - 330 and 370 Express Cruiser. This kit is for the early 1997 boats. The later 330/370 EC's had a different switch panel and we have a separate listing for those switch/actuator kits.
  • This kit includes a hole plug for the "Accessory" position at the left side of the main switch panel. If you have added a switch to that position, you will need to order it separately
  • This kit DOES NOT INCLUDE the cockpit lighting switches that are located on the transom. If you would like to order those switches, you will need one (1) VDDA-1 to replace SR part# 648063, one (1) V1D1-2 to replace 648097, and one (1) VLD1-1 to replace 773879. You will also need to order the actuators for those switches. (two C3-I, and one C3-F)
  • This kit includes one VLD1-1 (on)/off/(on) momentary switch that replaces the original "Windlass Control" toggle switch. We have found that most customers request this change when ordering a panel set.
  • This Kit DOES INCLUDE the following:
  • Actuators:
    1 C3-L horn symbol
    5 C3-I black with no lens
    14 C3-F black with single blue lens
    2 C3-K Ignition start/stop symbols
    2 C3-M Trim tab symbol
    1 VV Hole Plug VHP

    Switches:
    1 VLD1-3 SR part# 1733928 or 681494 windlass main
    1 VB4A-1 SR part# 670539 emergency start
    9 V1D1-2 SR part# 648097 bilge pumps, wipers, depth, spoiler lights, baitwell fill, baitwell discharge, washdown
    3 VAD1-1 SR part# 681510 Running lights, Anchor light, bilge blowers
    1 V2D1-3 SR part# 679332 horn
    2 VM4J-1 SR part# 670521 ignition
    6 VLD1-1 SR part# 773879 Windshield vent, hatch lift, hatch lift power, power seat, trim tabs, windlass control
    1 V1D1-1 SR part# 681502 Engine Sync

$ 354.51 354.51000000000005 USD $ 354.51

$ 354.51

Not Available For Sale

This combination does not exist.

Contact Us

Internal Reference: ELC-010029


Click the icons below for instructional videos on our YouTube channel, and to follow us on Facebook & Instagram.We want to see your boat! Send us your photos to be featured: [email protected]
