VEDA-1 Carling ON/ON/ON rocker switch, no lamps special circuit
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VEDA-1 ON/ON/ON DPDT TERMINAL GURADS W/ NO LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU:ELC-009066
- Series: Contura V
- Function:Latching ON/ON/ON DPDT
- Lamp: N/A
- *OEM Part #(s): VEDA-1
- *Sea Ray Part #(s): # 670547
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.

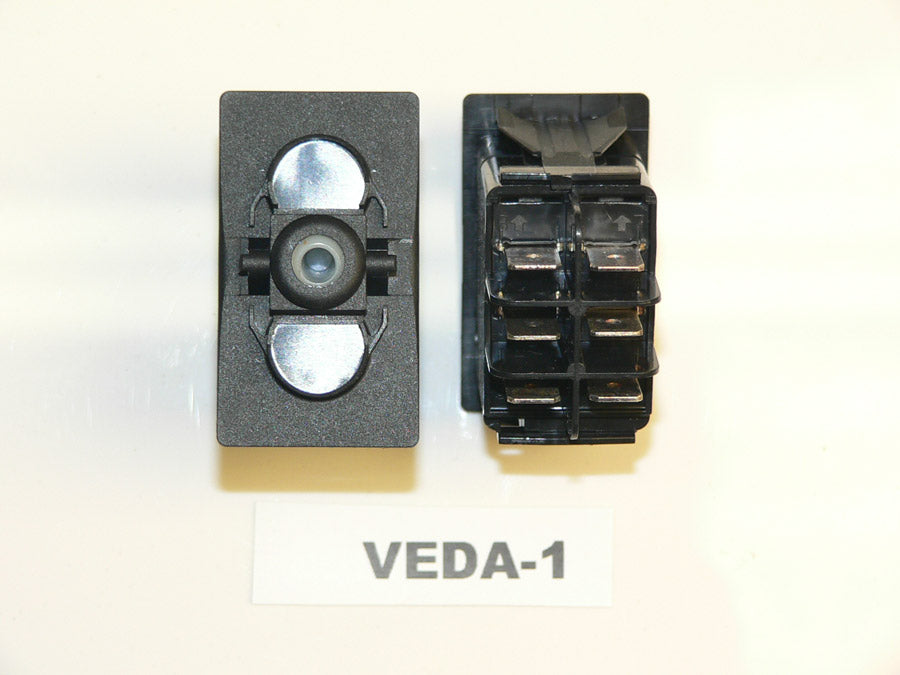

Carlingswitch ON/ON/ON double pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON/ON configuration.

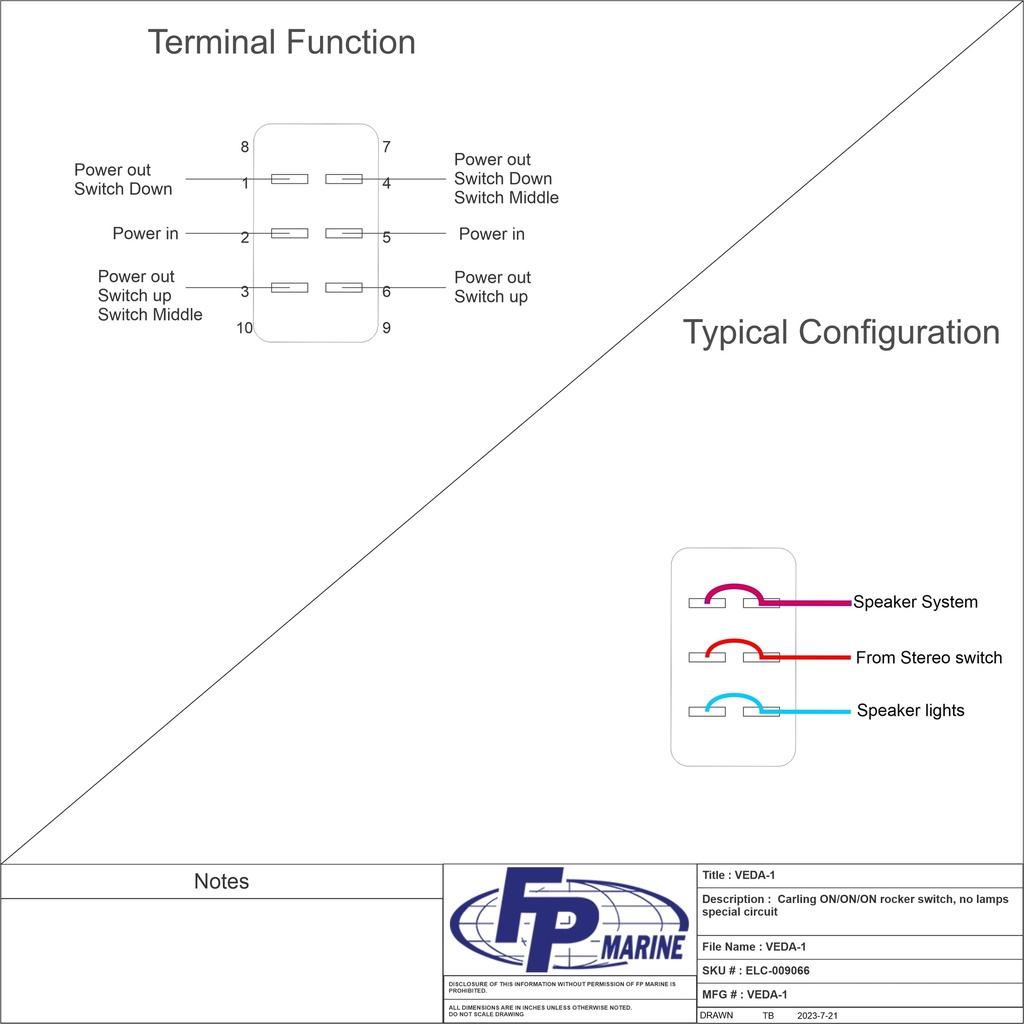

- 6 terminal; special circuit 2&3,5&6/2&3,4&5/1&2,4&5 no lamps. Terminals #2 and #5 are Power In. Terminals #3 and #6 are Power out when the actuator is in the Up position. Terminals #3 and #4 are Power out when the actuator is in the Middle position. Terminals #1 and #4 are Power out when the actuator is in the Down position
- Part# VEDA-1 (same switch as VEBA-1) Sea Ray part or 932889 windshield wipers
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Internal Reference:
ELC-009066
