VAD1-2 Carling ON/OFF double pole rocker switch w/red and green lamps.

Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

VAD1-2 ON/OFF DPST W/ 12V INDEPENDENT GREEN AND DEPENDENT RED LAMPS

Specifications:

• FP Marine SKU:ELC-009049
• Series: Contura

• Function: Latching ON/OFF DPST Double Pole

• Lamp: 12V Independent Greenposition 1 (top), Dependent Red position 2 (bottom)

• *OEM Part #(s): VAD1-2
• *Sea Ray Part #(s): VAD1GHTB
• *Substitution(s):


* Part #(s) may vary among boat models/years & are for search/reference only.

• ON/OFF configuration
• Double Pole*, the two sides of the switch are independent of each other.

• 12V Green independent LED lamp in the 1 position is wired to terminals (#7 -) and (#8 +) and illuminates independently of actuator position.
• 12V Red dependent LED lamp in 2 position is wired to terminals (#3+)(internally) and (#7-). This lamp illuminates when the switch is actuated to the ON position.

• An independent lamp has both a positive and negative terminal as opposed to a dependent lamp that just has a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to "dependent" lamps that get their power internally when the actuator moves to the "on" position

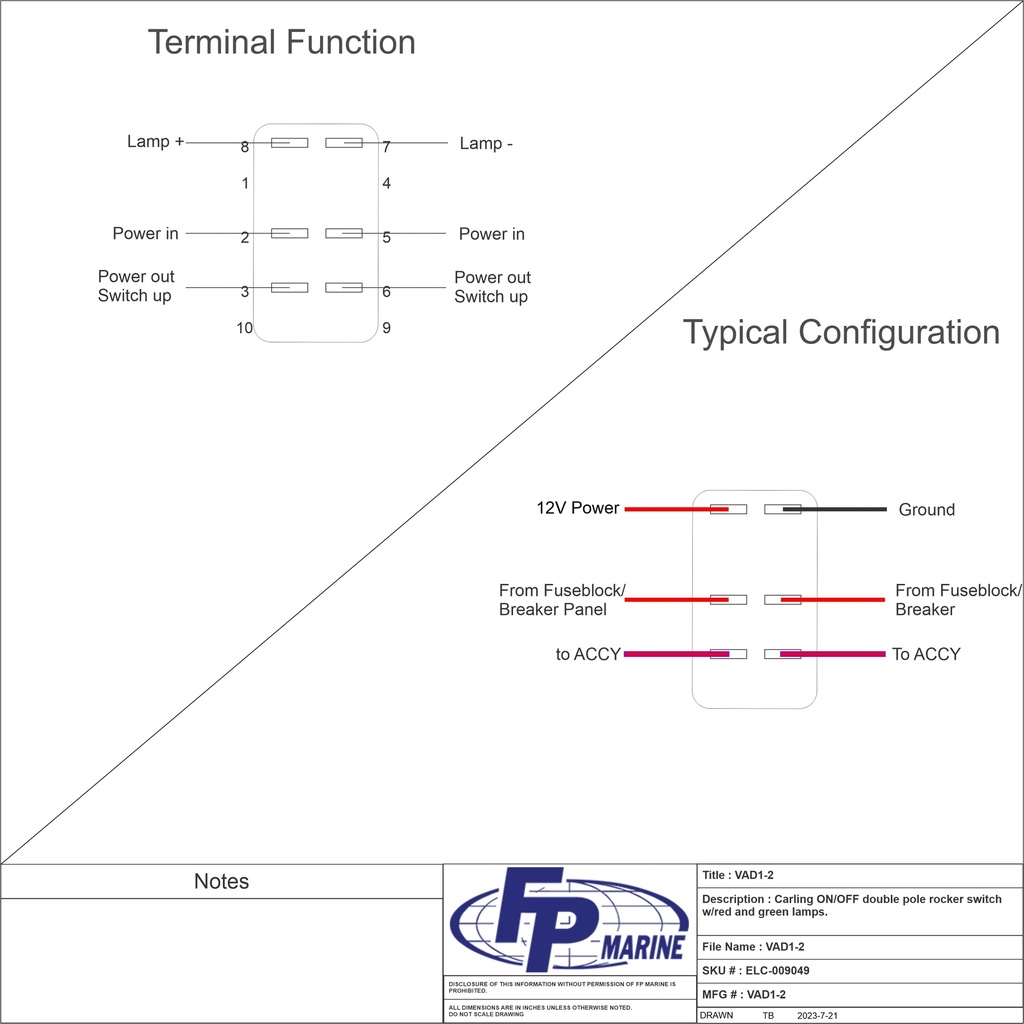

• 6 terminal; Terminal #7 is the ground for the green independent lamp in position 1(top) AND the Red dependent lamp in position 2(bottom). Terminal #8 is the power feed for the green independent lamp in position 1. Terminal #2 and Terminal #5 are power "IN". Typically they will be different input circuits each with their own circuit protection. Terminal #3 and Terminal #6 are power "OUT" (Terminal #3 is also the internal positive feed for the red lamp in position 2).
